Aseptic Bottom Magnetic Agitators
Low shear force effect
The bio-m® standard agitator is characterized by an extremely wide range of applications. It can be used for a wide range of mixing tasks in vessels from 2 to 80,000 liters
The high-efficiency agitator is characterized by an extremely low shear force effect on the material to be stirred. It is versatile and can be used in various process applications!
Medium shear force effect
For many upstream processes the Rotek impeller is a perfect option. The agitator generates medium shear forces and produces a high energy input. It is ideally suited for dissolving poorly soluble powders in liquids
High shear force effect
The bio-m® rotor-stator system offers high shear forces with optimal product solubility. Magnetically driven, the system guarantees absolute sterility at all times. It is ideally suited for dissolving poorly soluble powders in liquids.

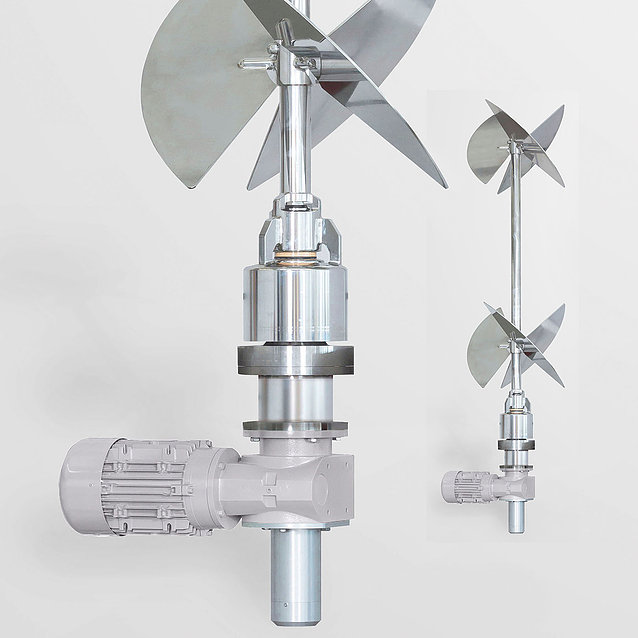

bio-m® BMAF Bottom Magnetic Stirrer for Fermenter Installation
The use of bottom-mounted magnetic agitators in bioreactors enables long, contamination-free process cycles, especially in the field of cell culture fermentation.
Thanks to the stable design of the slide bearings, our BMAF agitators allow long, free-floating agitator shafts and are used today in bioreactors with process volumes of up to 15,000 L. The stirring elements are selected according to process and customer requirements. Segmental, inclined-blade or Rushton disc stirrers are often used.
bio-m® TMAi Top-Mounted Magnetic Stirrer with Internal Bearing
Versatile magnetic agitator for pharmaceutical process vessels.
The ceramic bearings allow for continuous, low-noise operation in compliance with the highest hygiene requirements. The stirring elements are selected according to process and customer requirements. Segmental, inclined-blade or marine propellers are often used.
